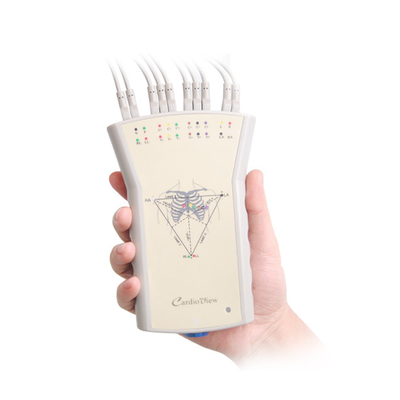

Portable Handheld PC ECG Machine , 12-channel pc ecg device with cheap price
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Product: | Handheld PC ECG Monitor With Pan Shape Acquisition Box CV200 | color: | Grey |
|---|---|---|---|
| Connection: | USB/Wireless | Function: | ECG WORK STATION,Vector ECG |
| Channels: | 12-LEAD ECG | Sampling:: | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
| Patient Cable: | Standard 10-wire,15-Pin D Connector | Dimensions: | 14912226 mm(5.94.81.0 in.) |
| High Light: | ecg monitoring device,pocket ecg machine |
||

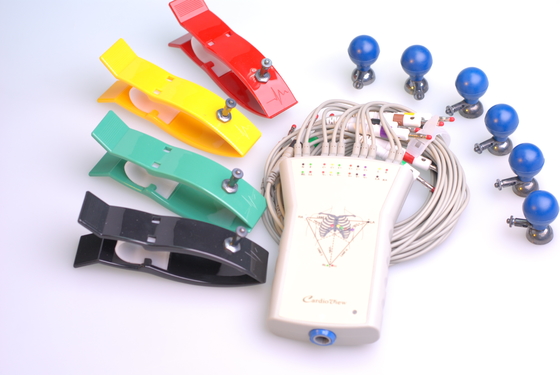

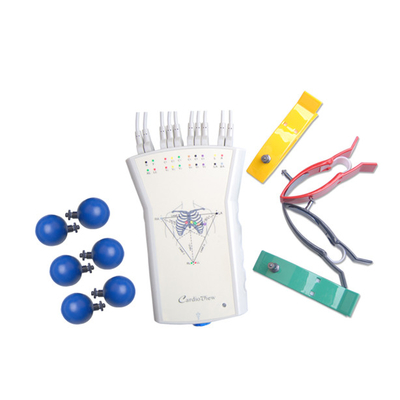

Portable Handheld PC ECG Machine , 12-channel pc ecg device with cheap price

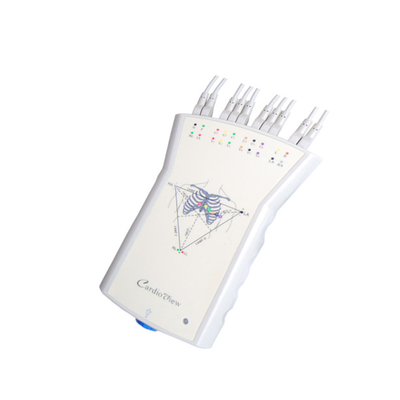

CV-200-Rest ECG,VCG and VLP
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer
|
VH- CV200-ECG work station specification |
|
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
|
Digital Resolution |
2µV |
|
Frequency Response |
0.05-250Hz(+3dB) |
|
Common Mode Rejection |
>90dB |
|
Input Impedance |
>10 M |
|
Time Constant |
3.2 Sec |
|
Maximum Electrode Potential |
+300mV DC |
|
Dynamic Range |
+10mV |
|
Isolate Voltage |
4000V |
|
Current Leek |
<10µA |
|
Patient Cable |
Standard 10-wire,15-Pin D Connector |
|
PC Interface |
USB Connector |
|
Dimensions |
14912226 mm(5.94.81.0 in.) |
