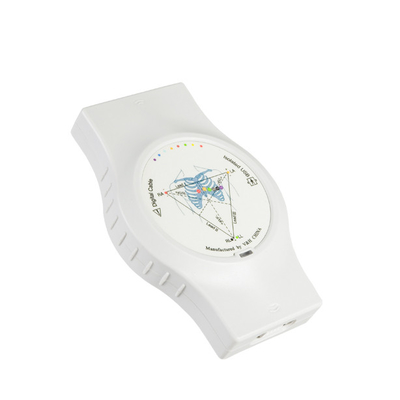

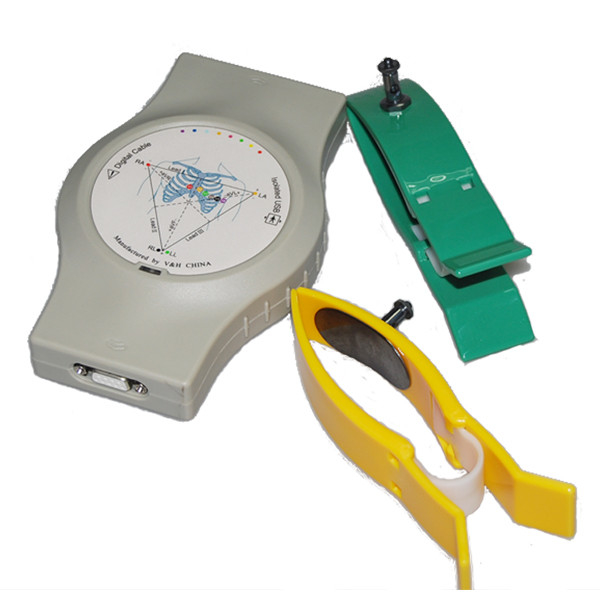

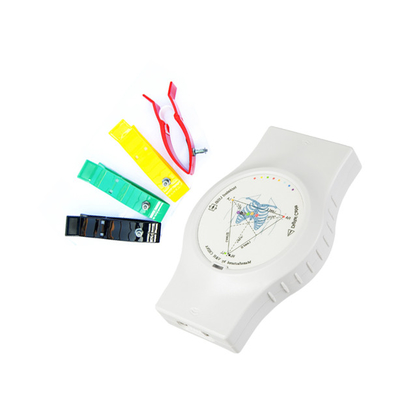

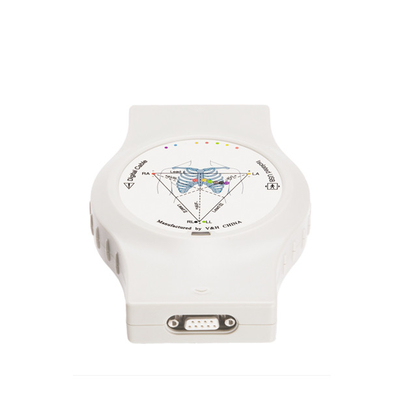

Light Grey Handheld Analysis PC Based ECG Machine CV200+ ECG Monitoring System
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| product: | Handheld analysis PC based ECG Machine CV200+ | Color: | light grey |
|---|---|---|---|
| Frequency Response: | 0.05-250Hz(+3dB) | Input Impedance: | >10 M |
| Time Constant: | 3.2 Sec | Maximum Electrode Potential: | +300mV DC |
| Tranfer way: | USB cable | ||
| High Light: | pc ecg machine,computer ecg |
||
ECG Monitoring System , Handheld analysis PC based ECG Machine CV200+
Quick Detail
|
Name |
Resting pc digital ECG |
Function |
ECG work station ,Vector ECG |
|
Type |
Resting |
Channels |
12- LEAD ECG |
|
Connection |
USB |
certification |
CE ISO |
Description
|
Brand Name |
V&H |
|
Model Number |
CV200+ |
|
Place of Origin |
Beijing, China (Mainland) |
|
Color |
Grey |
|
Transfer way |
USB |
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
CV-200+-Rest ECG,VCG and VLP
CARDIO VIEW CV-200+ is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
Minimum Computer System Requirements:
- Pentium III Processor
- 128MB RAM
- 20G HD
- Windows XP Operating System
- VGA Compatible Display
- Windows XP Compatible Laser or Inkjet Printer
Specification
|
VH- CV200+-ECG work station specification |
|
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
|
Digital Resolution |
2µV |
|
Frequency Response |
0.05-250Hz(+3dB) |
|
Common Mode Rejection |
>90dB |
|
Input Impedance |
>10 M |
|
Time Constant |
3.2 Sec |
|
Maximum Electrode Potential |
+300mV DC |
|
Dynamic Range |
+10mV |
|
Isolate Voltage |
4000V |
|
Current Leek |
<10µA |
|
Patient Cable |
Standard 10-wire,15-Pin D Connector |
|
PC Interface |
USB Connector |
|
Dimensions |
14912226 mm(5.94.81.0 in.) |
About us
Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination
