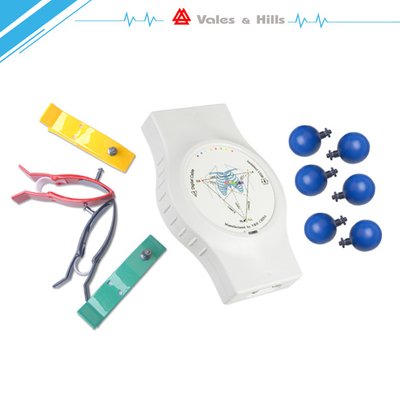

Resting Type 12 Channel Pc Ecg Machine / Computer ECG Device For Medical
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Product: | 2017 China manufacturer 12 channel pc based ecg device for medical | Type: | Resting |
|---|---|---|---|
| Function: | ECG Work Station,Vector ECG | Cable: | 12-Lead Patient Cable |
| Interface: | USB | Defibrillation Protect:: | Built-in box |
| High Light: | pc ecg machine,digital eeg machine |
||
2017 China manufacturer 12 channel pc based ecg device for medical
Specification
| VH- CV200+ ECG work station specification | |
| Sampling | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
| Digital Resolution | 2µV |
| Frequency Response | 0.05-250Hz(+3dB) |
| Common Mode Rejection | >90dB |
| Input Impedance | >10 M |
| Time Constant | 3.2 Sec |
| Maximum Electrode Potential | +300mV DC |
| Dynamic Range | +10mV |
| Isolate Voltage | 4000V |
| Current Leek | <10µA |

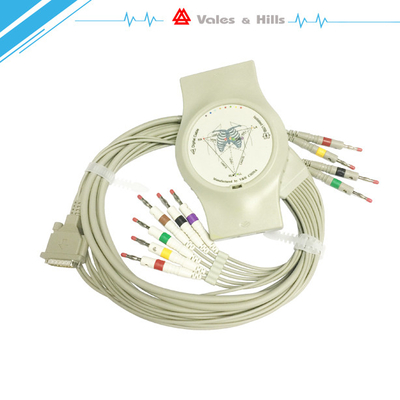

| Patient Cable | Standard 10-wire,15-Pin D Connector |
| PC Interface | USB Connector |
| Dimensions | 14912226 mm(5.94.81.0 in.) |
Minimum Computer System Requirements:
- Pentium III Processor
- 128MB RAM
- 20G HD
- Windows XP Operating System
- VGA Compatible Display
- Windows XP Compatible Laser or Inkjet Printer
FAQ
1. What is your MOQ?
Our MOQ is 1 set for ECG device.
2. What kinds of certificates do your products have?
All our products have CE & ISO certifiacte.
3. What is the warranty?
The free warranty is 12 months from the day of purchaseing. If there is any fault for our products within the free warranty period, we will repair it and change the fault for free.
4. Do you offer technical support?
Yes, we offer professional engineer for customers on the technical support.
About us
Vales and Hills Biomedical Tech.Ltd is a global provider centralizing of electrocardiograph(ECG) products and ECG web services for clinical applications. For over 10 years,we have been creating a complete CardioView product line which covers Portable ECG(IOS and Android ), PC-ECG,ECG Workstation,Holter,ABPM, ECG Network and ECG Cloud Service.
