Stable PC Based ECG Machine CV200 , Cardiac Handheld ECG Machine
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Name: | Stable PC-based ECG Machine CV1200 , Handheld ECG Machine in Cardiac world | Function: | ECG work station ,Vector ECG |
|---|---|---|---|
| Type: | Resting | Channels: | 12-channel |
| Connection: | USB | color: | white and grey |
| High Light: | ecg monitoring device,hand held ecg |
||

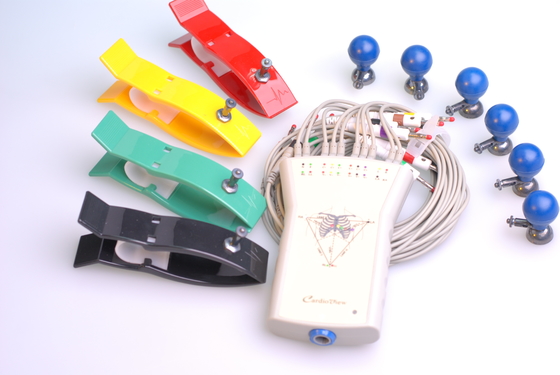

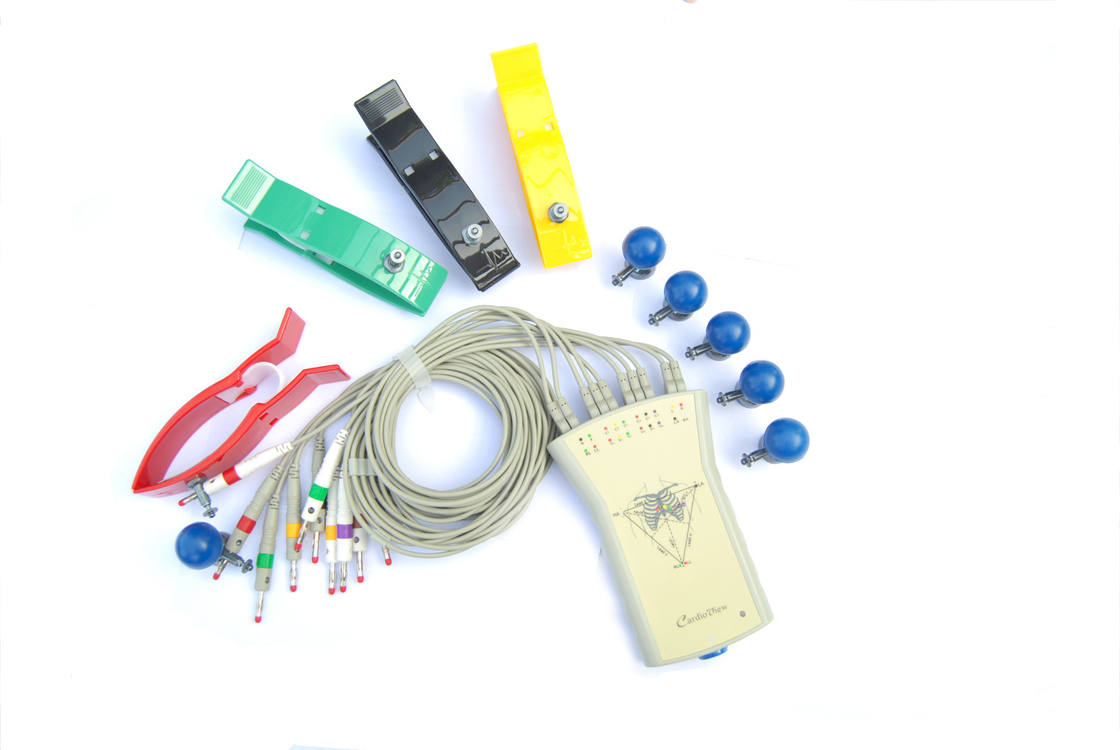

Stable PC Based ECG Machine CV200 , Cardiac Handheld ECG Machine
CV-200-Rest ECG,VCG and VLP
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function
electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular
Late Potential (VLP).
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer
Specification
|
VH- CV200-ECG work station specification |
|
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
|
Digital Resolution |
2µV |
|
Frequency Response |
0.05-250Hz(+3dB) |
|
Common Mode Rejection |
>90dB |
|
Input Impedance |
>10 M |
|
Time Constant |
3.2 Sec |
|
Maximum Electrode Potential |
+300mV DC |
|
Dynamic Range |
+10mV |
|
Isolate Voltage |
4000V |
|
Current Leek |
<10µA |
|
Patient Cable |
Standard 10-wire,15-Pin D Connector |
|
PC Interface |
USB Connector |
|
Dimensions |
14912226 mm(5.94.81.0 in.) |
CV-200 ,the system automatically stores, analyzes, averages, displays and prints the
recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed
on-screen and printed in numerous formats on most Windows compatible printers. By means of regular
updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to
PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and
100% safety for the patient.
Commerce Clause
|
Minimum Order Quantity: |
1box/boxes |
|
Price: |
negotiation |
|
Packaging Details: |
standard package |
|
Delivery Time: |
15days after payment |
|
Payment Terms: |
Ex works T/T Money Gram |
|
Supply Ability: |
10 Box/Boxes / Week |
