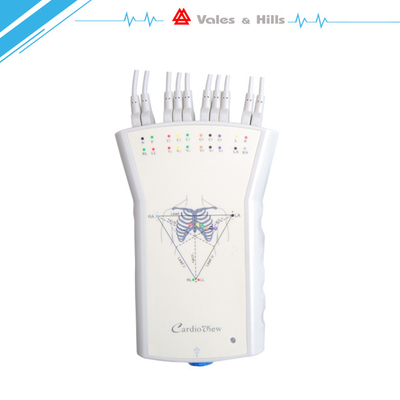

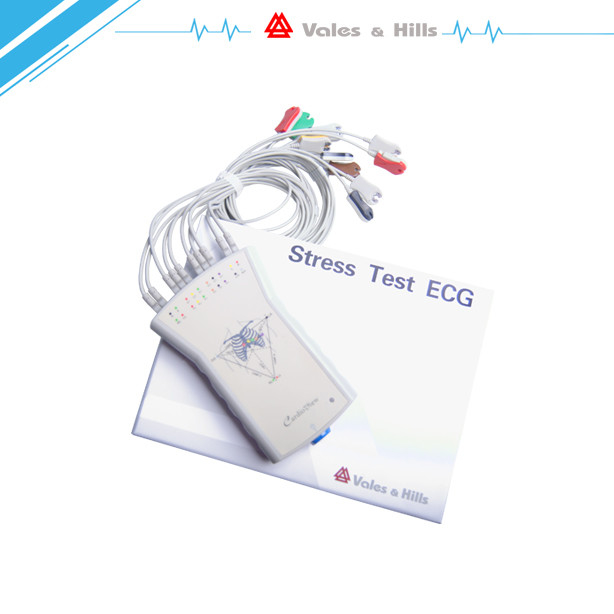

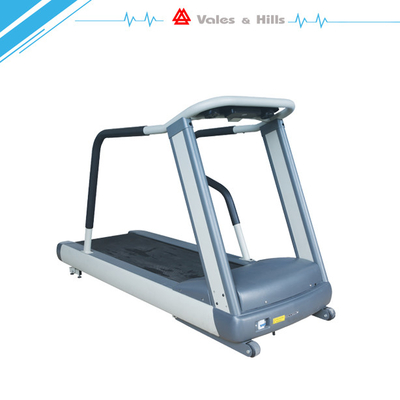

Portable 12 Channel Stress Test Ecg Heart Monitor Machine With Treadmill
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Product: | Latest portable 12 channel stress test ECG machine with treadmill | Type: | Stress |
|---|---|---|---|
| Function: | automatical monitor and analysis ECG | Cable: | Simultaneous 12-lead |
| PC interface: | USB to PC | Defibrillation Protect: | Build-in |
| High Light: | stress ecg machine,exercise ecg machine |
||
Portable 12 Channel Stress Test Ecg Heart Monitor Machine With Treadmill
Description
| Brand Name | V&H |
| Model Number | CV1200 |
| Place of Origin | Beijing, China (Mainland) |
| Color | Hite black grey |
| Transfer way | USB |
1. Automatic ECG measurements and interpretation
2. CE approve
3. 12- channel ECG with ST measurement
Reflecting the latest development in stress system
V&H newly developed CV1200 is a high-performance cardiac stress system which incorporates the latest innovations with the easy of use workflow and intuitive icons and controls that you come to expect in CardioView series. Thanks to its elaborately designed ECG acquisition device and proprietary digital processing algorithms, CV1200 is specially featured in its super-stable and noise-free ECG tracings even at steep grades. The sophisticated software gives you a perfect solution for cardiology diagnosis as well as a fantastic user experience.
Standard Features
- Automatic ECG measurements and interpretation
- 12- channel fulldisclosure exercise ECG,with ST measurement and rhythm measurement
- Real time display,analyze HR,ST segment,and reanalyze ST segment
- ST,Delta ST,ST/HR,ST slope,J point and R point trends
- Data management system
- Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
- Common laser printer interface for documentation on standard(A4) paper
- CV-1200 controls selection of peripheral
equipment(ergometers,treadmills and NIBP) through integrated interface protocols(Bruce,Bruce modified,Balke ware,Ellestad,ect.) - Large color screen with high resolution for paperless operation
- Micosoft Windows XP operating system
Specification
| CV-1200 Specification | ||
|
System
|
Monitor | 17" colour,high resolution |
| Operator interface | Standard alphanumeric PC keyboard, and mouse | |
| Power requirement | 110/230V,50/60Hz | |
| Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
| Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
| Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
| Paper speed | 12.5/25/50mm/sec | |
| Sensitivity | 5/10/20mm/mV | |
| Print format | 6/12 channel printout, Automatic baseline adjustment |
|
| Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
| Sampling rate | 1000Hz/ch | |
| CMR | >90dB | |
| Maximum Electrode Potential | +300mV DC | |
| Isolation | 4000V | |
| Current Leek | <10µA | |
| Digital Resolution | 12 bits | |
| Input range | +10 mV | |
| Software optional | Automatic ECG measurements and interpretation, Vector Cardiograph Ventricular Late Potentials, QT Dispersion |
|
| Environment Condition | Temperature operating | 10 to 40 |
| Temperature storage | -10 to 50 | |
| Pressure operating | 860hPa to 1060hPa | |
